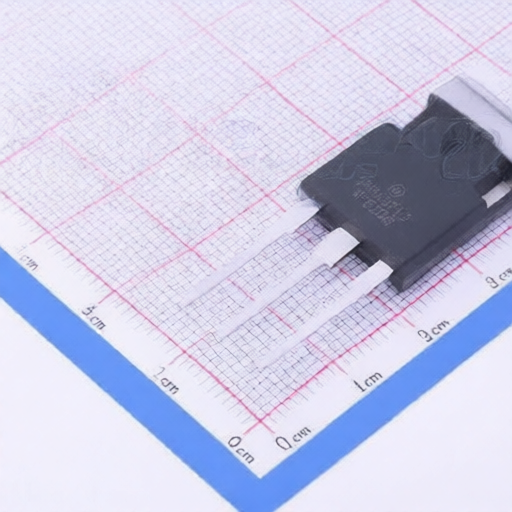

onsemi NGTB35N65FL2WG
Manufacturer:
onsemi
Mfr. Part #:
NGTB35N65FL2WG
Package:
TO-247
Customer #:
Description:
300W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
onsemi NGTB35N65FL2WG
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
132ns
Pd - Power Dissipation:
300W
Td(on):
72ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
125nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
68ns
Switching Energy(Eoff):
280uJ
Turn-On Energy (Eon):
840uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
