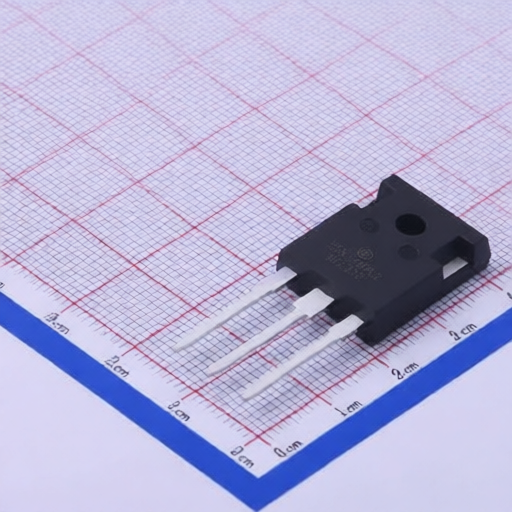

onsemi NGTB25N120FL2WG
Manufacturer:
onsemi
Mfr. Part #:
NGTB25N120FL2WG
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.2kV 50A TO-247
Description:
IGBT 1.2kV 50A 385W Through Hole TO-247
Datasheet:
onsemi NGTB25N120FL2WG
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
179ns
Pd - Power Dissipation:
385W
Td(on):
87ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
178nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
154ns
Switching Energy(Eoff):
600uJ
Turn-On Energy (Eon):
1.95mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
