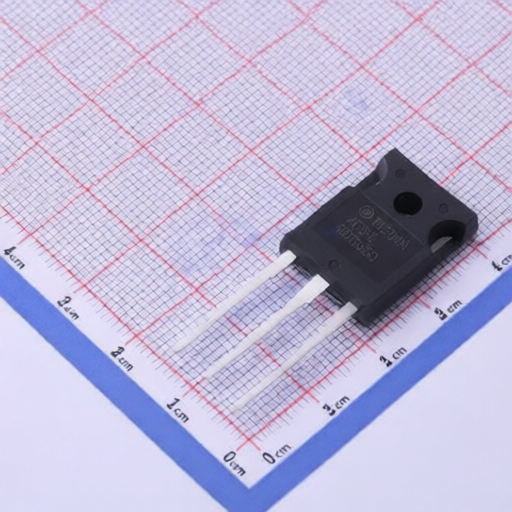

onsemi AFGHL50T65SQ
Manufacturer:
onsemi
Mfr. Part #:
AFGHL50T65SQ
Package:
TO-247-3L
Customer #:
Key Attributes:
AEC 101 Qualified, 650V, 50A Fieldstop 4 trench IGBT, Stand alone IGBT without co-packed diode
Description:
268W 650V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL50T65SQ
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
81ns
Pd - Power Dissipation:
268W
Td(on):
20ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
-
Operating Temperature:
-55℃~+175℃@(Tj)
Switching Energy(Eoff):
460uJ
Turn-On Energy (Eon):
950uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
