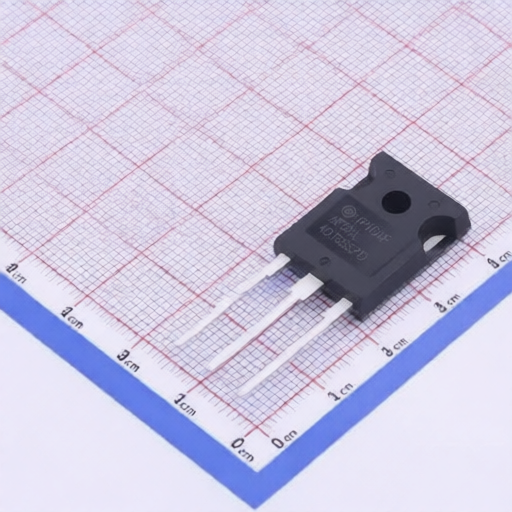

onsemi AFGHL40T65SPD
Manufacturer:
onsemi
Mfr. Part #:
AFGHL40T65SPD
Package:
TO-247-3L
Customer #:
Key Attributes:
IGBT, 650V 40A in TO247 providing enhanced Final Test coverage for better and robuster performance.
Description:
267W 650V FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
onsemi AFGHL40T65SPD
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
-
Pd - Power Dissipation:
267W
Td(on):
18ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
36nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
35ns
Switching Energy(Eoff):
270uJ
Turn-On Energy (Eon):
1.16mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
