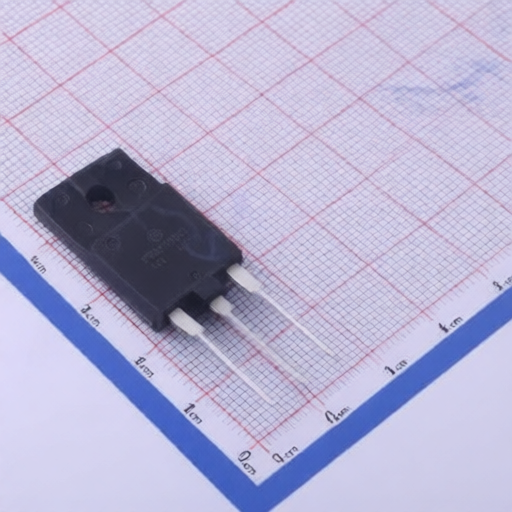

onsemi FGAF40S65AQ
Manufacturer:
onsemi
Mfr. Part #:
FGAF40S65AQ
Package:
TO-3PF-3
Customer #:
Description:
94W 650V FS (Field Stop) TO-3PF-3 Single IGBTs RoHS
Datasheet:
onsemi FGAF40S65AQ
Products Specifications
Manufacturer:
Package:
TO-3PF-3
Td(off):
81.6ns
Pd - Power Dissipation:
94W
Td(on):
17.8ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
75nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
274ns
Switching Energy(Eoff):
62uJ
Turn-On Energy (Eon):
132uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
