MICROCHIP MSC025SMA120B4
Manufacturer:
MICROCHIP
Mfr. Part #:
MSC025SMA120B4
Package:
TO-247-4
Customer #:
Key Attributes:
SICFET N-CH 1.2kV 103A TO-247-4
Description:
N-Channel 1.2kV 103A 500W Through Hole TO-247-4
Datasheet:
MICROCHIP MSC025SMA120B4
Products Specifications
Manufacturer:
Package:
TO-247-4
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
103A
Operating Temperature -:
-55℃~+175℃

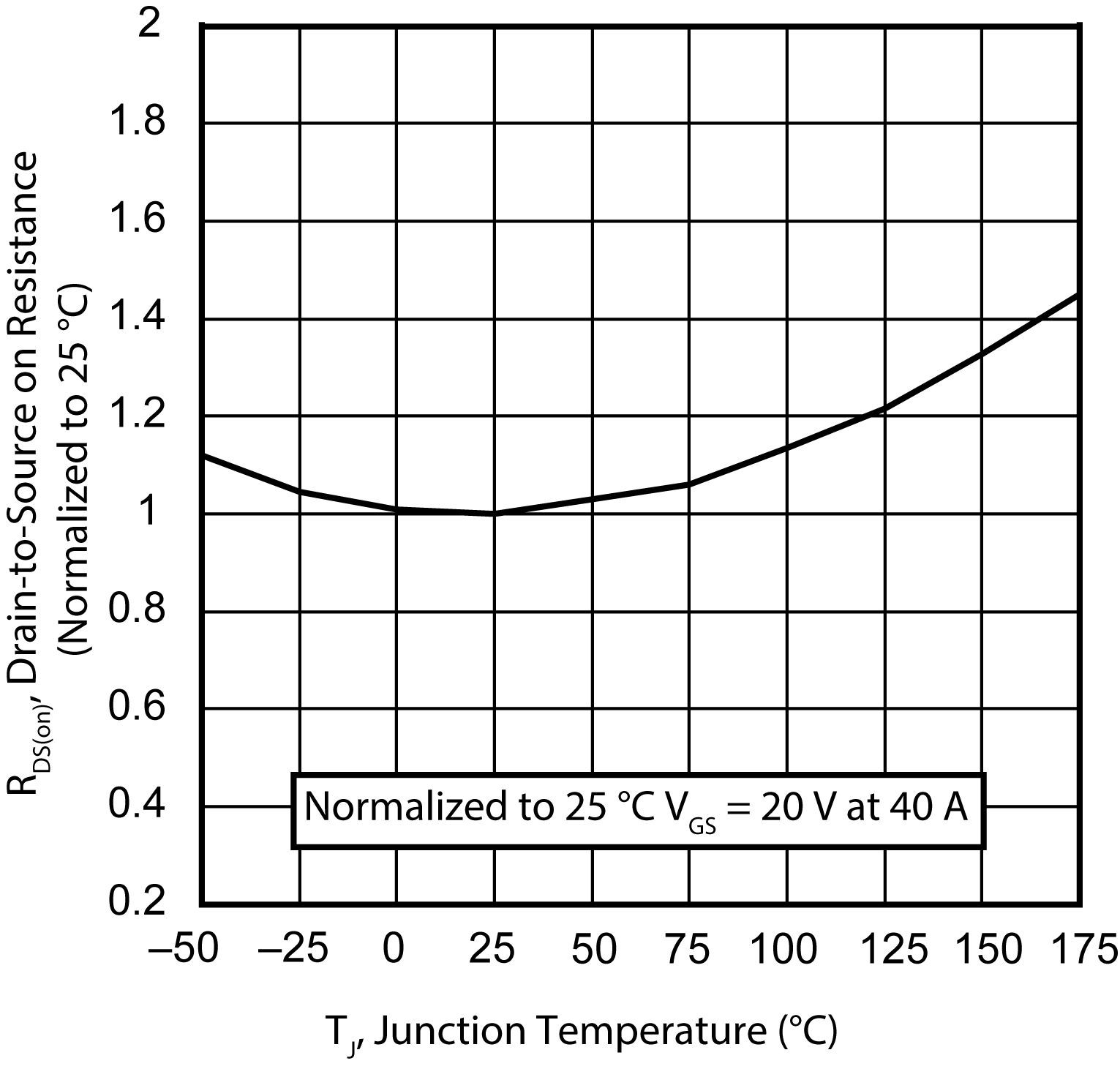

RDS(on):
31mΩ

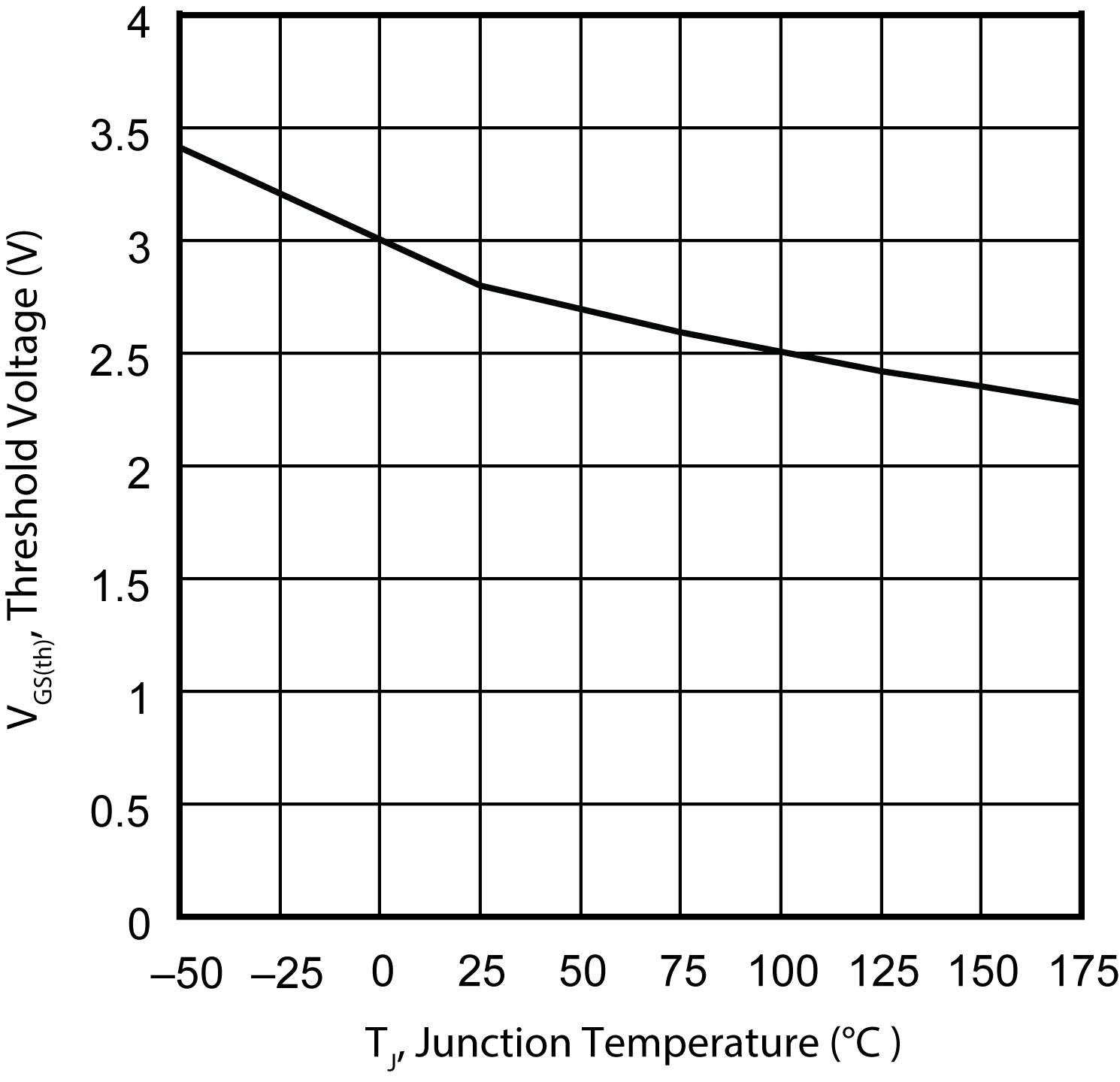

Gate Threshold Voltage (Vgs(th)):
2.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
-
Input Capacitance(Ciss):
3.02nF
Output Capacitance(Coss):
-
Pd - Power Dissipation:
500W
Gate Charge(Qg):
232nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
