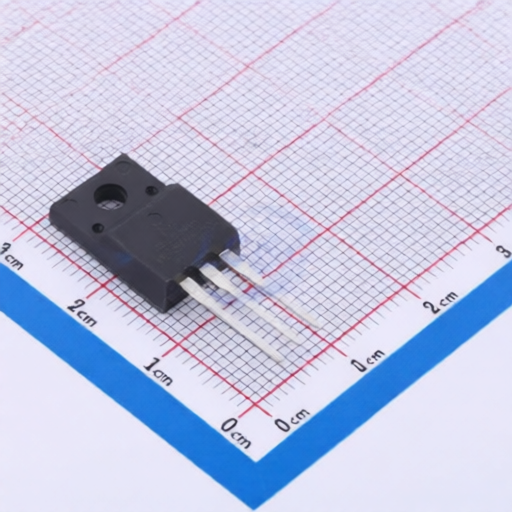

MASPOWER MS4N1350S
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS4N1350S
Package:
TO-220F
Customer #:
Key Attributes:
MOSFET N-CH 1.5kV 4A TO-220F
Description:
N-Channel 1.5kV 4A 30W Through Hole TO-220F
Datasheet:
MASPOWER MS4N1350S
Products Specifications
Manufacturer:
Package:
TO-220F
Configuration:
-
Drain to Source Voltage:
1.5kV
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5.5Ω@10V
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
29pF
Number:
1 N-channel
Output Capacitance(Coss):
127pF
Input Capacitance(Ciss):
824pF
Pd - Power Dissipation:
-
Gate Charge(Qg):
37nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
