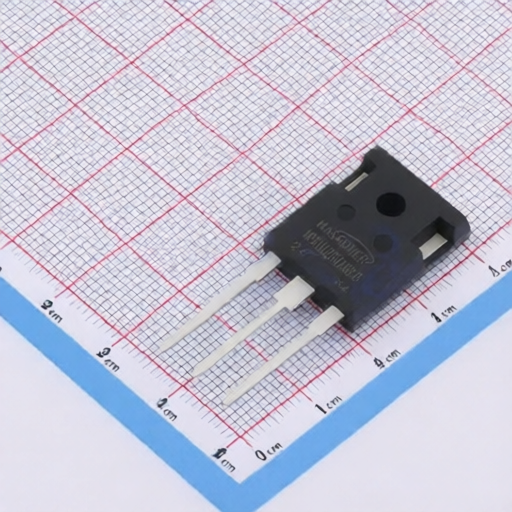

MASPOWER MS4N250HGC0
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS4N250HGC0
Package:
TO-247
Customer #:
Key Attributes:
MOSFET N-CH 2.5kV 4A TO-247
Description:
N-Channel 2.5kV 4A 520W Through Hole TO-247
Datasheet:
MASPOWER MS4N250HGC0
Products Specifications
Manufacturer:
Package:
TO-247
Drain to Source Voltage:
2.5kV
Current - Continuous Drain(Id):
4A
RDS(on):
19Ω@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
5.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
48pF
Number:
1 N-channel
Output Capacitance(Coss):
110pF
Pd - Power Dissipation:
520W
Input Capacitance(Ciss):
1.54nF
Gate Charge(Qg):
74nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
