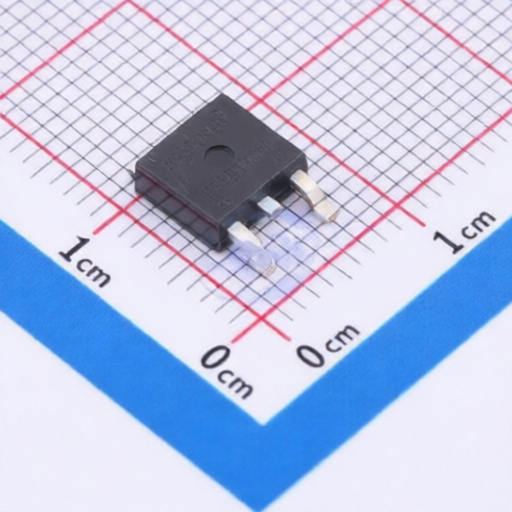

MASPOWER MS5N100FD
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS5N100FD
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 1kV 5A TO-252
Description:
N-Channel 1kV 5A 104W Surface Mount TO-252
Datasheet:
MASPOWER MS5N100FD
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
1kV
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3.5Ω@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Reverse Transfer Capacitance (Crss@Vds):
3pF
Number:
1 N-channel
Output Capacitance(Coss):
59pF
Pd - Power Dissipation:
104W
Input Capacitance(Ciss):
506pF
Gate Charge(Qg):
18.68nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
