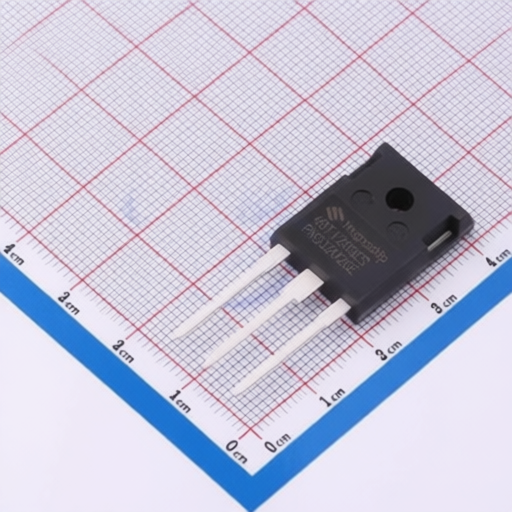

MagnaChip Semicon MBQ40T120QESTH
Manufacturer:
MagnaChip Semicon
Mfr. Part #:
MBQ40T120QESTH
Package:
TO-247
Customer #:
Key Attributes:
High speed Field Stop Trench IGBT
Description:
428W 1.2kV FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
MagnaChip Semicon MBQ40T120QESTH
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
428W
Td(off):
178ns
Td(on):
74ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
86pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@1mA
Gate Charge(Qg):
428nC@15V
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
158pF
Reverse Recovery Time(trr):
285ns
Switching Energy(Eoff):
770uJ
Turn-On Energy (Eon):
5.13mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MagnaChip Semicon
55 Products
MagnaChip Semiconductor Corporation is a designer and manufacturer of analog and mixed-signal semiconductor platform solutions for communications, Internet of Things (“IoT”) applications, consumer, industrial and automotive applications. The Company’s business is comprised of two operating segments: the Foundry Services Group and the Standard Products Group.
