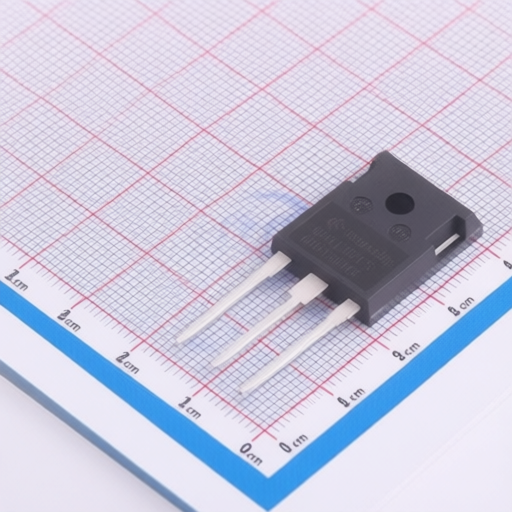

MagnaChip Semicon MBQ40T120FESTH
Manufacturer:
MagnaChip Semicon
Mfr. Part #:
MBQ40T120FESTH
Package:
TO-247
Customer #:
Key Attributes:
High speed FieldStop Trench IGBT
Description:
357W 1.2kV FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
MagnaChip Semicon MBQ40T120FESTH
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
308ns
Pd - Power Dissipation:
357W
Td(on):
65ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
107pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@1mA
Operating Temperature:
-55℃~+150℃
Gate Charge(Qg):
341nC@15V
Reverse Recovery Time(trr):
100ns
Switching Energy(Eoff):
540uJ
Turn-On Energy (Eon):
1.96mJ
Input Capacitance(Cies):
6.03nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
206pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
