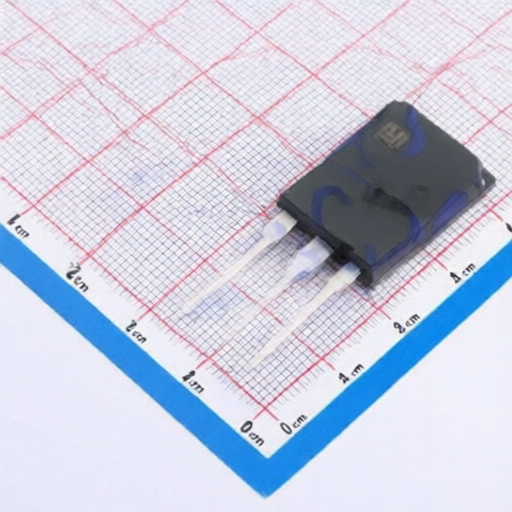

luxin-semi YGQ75N120FP
Manufacturer:
luxin-semi
Asian Brands
Mfr. Part #:
YGQ75N120FP
Package:
T0-247
Customer #:
Key Attributes:
IGBT 1.2kV 75A T0-247
Description:
IGBT 1.2kV 75A Through Hole T0-247
Datasheet:
luxin-semi YGQ75N120FP
Products Specifications
Manufacturer:
Package:
T0-247
Pd - Power Dissipation:
735W
Td(off):
171ns
Td(on):
122ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
39.26pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@250uA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
233.1nC@15V
Reverse Recovery Time(trr):
298ns
Switching Energy(Eoff):
2.9mJ
Turn-On Energy (Eon):
6.6mJ
Input Capacitance(Cies):
7.655nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
351pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
luxin-semi
35 Products
Shanghai Luxin Electronic Technology Co., Ltd. was established in May 2017. It is a high-tech enterprise specializing in the research and development, production, application and sales of power semiconductors. After several years of industry accumulation, the company has innovative semiconductor core technology, world-class design capabilities, and process development technology, and brings together outstanding returnees and outstanding local teams. The products cover IGBT, SGT/SJMOSFET, SiC, and other power devices of multiple voltage segments, and provide system solutions for various sub-application fields.
