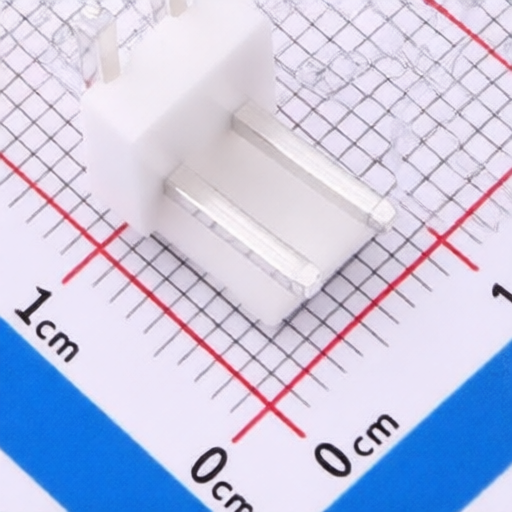

JXTCONN A396E1W1-2Y2P11
Manufacturer:
JXTCONN
Asian Brands
Mfr. Part #:
A396E1W1-2Y2P11
Package:
Through Hole,Right Angle,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH 2POS
Description:
Connector Header 2 position -25℃~+85℃
Datasheet:
JXTCONN A396E1W1-2Y2P11
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.96mm
Y-Width of Bottom Edge on Board:
12mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x2P
Contact Plating:
Tin
Pitch:
3.96mm
Contact Material:
Brass;PA66
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
Z-Height of the Board:
8.6mm
Mounting Type:
Right Angle
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
