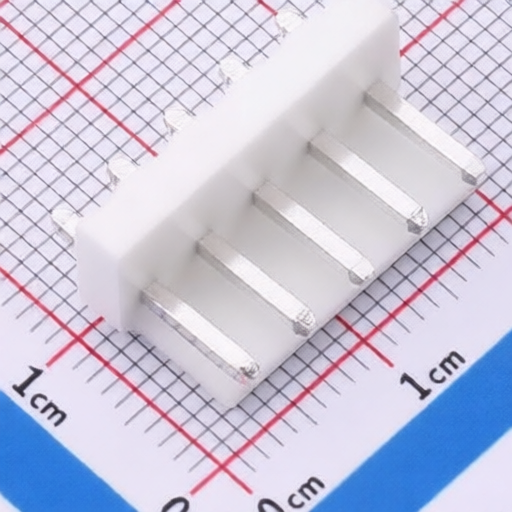

JXTCONN A396E1L1-2Y5P11
Manufacturer:
JXTCONN
Asian Brands
Mfr. Part #:
A396E1L1-2Y5P11
Package:
Through Hole,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH 5POS
Description:
Connector Header 5 position -25℃~+85℃
Datasheet:
JXTCONN A396E1L1-2Y5P11
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.96mm
Y-Width of Bottom Edge on Board:
7.9mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x5P
Contact Plating:
Tin
Pitch:
3.96mm
Contact Material:
Brass;LCP
Voltage Rating (Max):
250V
Number of PINs Per Row:
5
Number of Rows:
1
Mounting Type:
Through Hole
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
