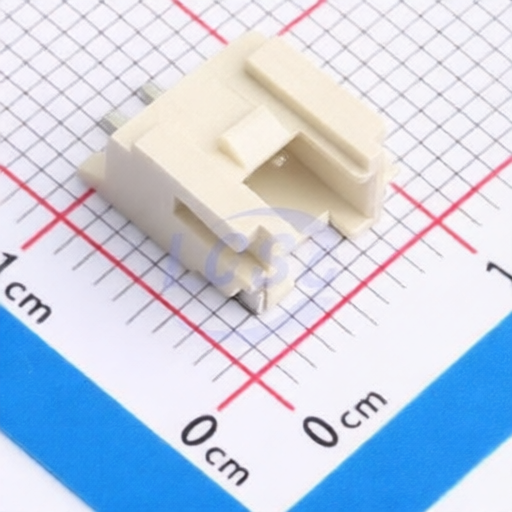

JXTCONN D200E1W1-2W2P43
Manufacturer:
JXTCONN
Asian Brands
Mfr. Part #:
D200E1W1-2W2P43
Package:
SMD,P=2mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 2POS
Description:
Connector Header 2 position -25℃~+85℃
Datasheet:
JXTCONN D200E1W1-2W2P43
Products Specifications
Manufacturer:
Package:
SMD,P=2mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
9.2mm
Pins Structure:
1x2P
Pitch:
2mm
Contact Material:
Brass;LCP
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
8mm
Mounting Type:
Surface Mount, Right Angle
Z-Height of the Board:
5.2mm
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
