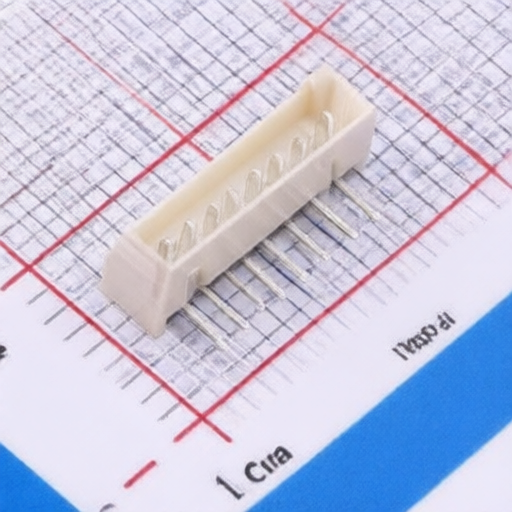

JXTCONN A125F1W1-2W8P41
Manufacturer:
JXTCONN
Asian Brands
Mfr. Part #:
A125F1W1-2W8P41
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 8POS 1.25mm
Description:
1x8P 1.25mm 125V 8 1 Right Angle -25℃~+85℃ Through Hole,Right Angle,P=1.25mm Headers, Male Pins RoHS
Datasheet:
JXTCONN A125F1W1-2W8P41
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Y-Width of Bottom Edge on Board:
4.6mm
Pins Structure:
1x8P
Contact Material:
Brass;LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
8
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.9mm
Z-Height of the Board:
3.3mm
Mounting Type:
Right Angle
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
