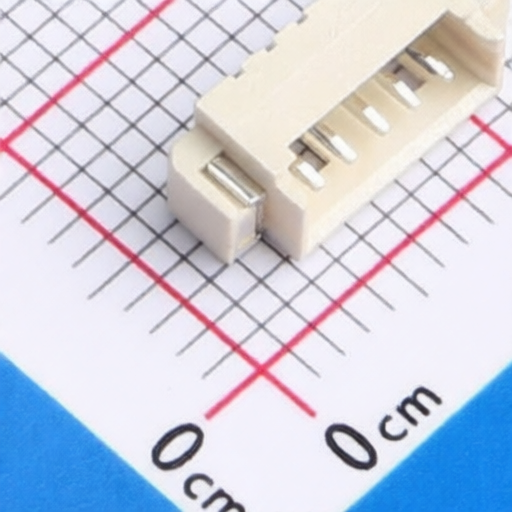

JXTCONN D125F2W1-2W5P43
Manufacturer:
JXTCONN
Asian Brands
Mfr. Part #:
D125F2W1-2W5P43
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 5POS
Description:
Connector Header 5 position -25℃~+85℃
Datasheet:
JXTCONN D125F2W1-2W5P43
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.3mm
Pins Structure:
1x5P
Contact Material:
Brass;LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.25mm
Z-Height of the Board:
3.5mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
