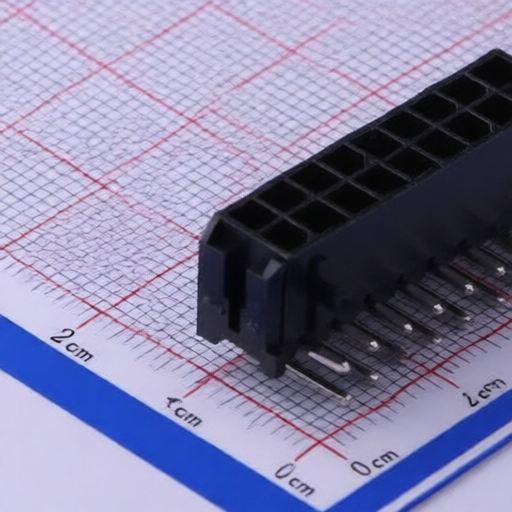

Joint Tech Elec C3030WR-F-2X09P

Joint Tech Elec C3030WR-F-2X09P

Name: Joint Tech Elec C3030WR-F-2X09P
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: C3030WR-F-2X09P

Package: Through Hole,Right Angle,P=3mm

Customer #:

Key Attributes: CONN HEADER TH R/A 18POS 3mm

Description: Connector Header 18 position 3mm Pitch 5A Right Angle -25℃~+85℃

Datasheet: Joint Tech Elec C3030WR-F-2X09P

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,Right Angle,P=3mm

Y-Width of Bottom Edge on Board:

9.9mm

Pins Structure:

2x9P

Reference Series:

Contact Plating:

Tin

Contact Material:

Brass;Glass-Fiber Reinforced PBT

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

3mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

Z-Height of the Board:

7.36mm

Row Spacing:

3mm

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	100
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
