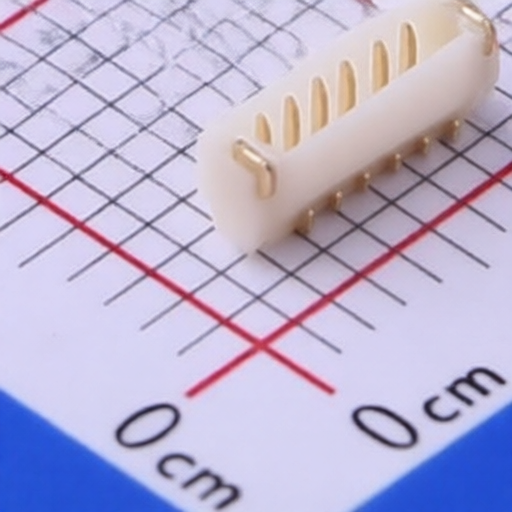

Joint Tech Elec A0800WR-S-06PD01
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A0800WR-S-06PD01
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 6POS 0.8mm
Description:
Connector Header 6 position 0.8mm Pitch 500mA Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Joint Tech Elec A0800WR-S-06PD01
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2.7mm
Reference Series:
-
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
0.8mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
6
Number of Rows:
1
Z-Height of the Board:
1.7mm
Mounting Type:
Surface Mount, Right Angle
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
