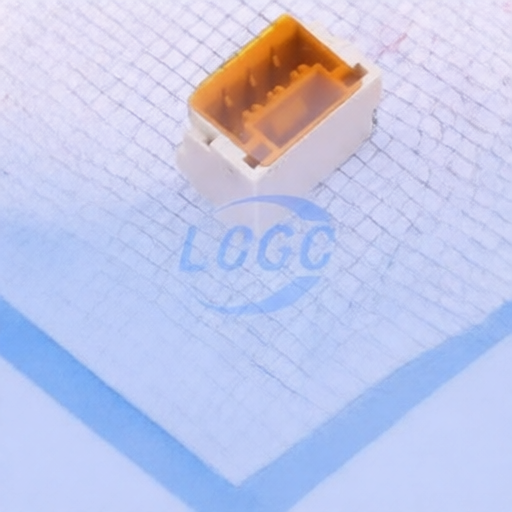

Joint Tech Elec A12514WV-S-03PNLNT1T00L
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A12514WV-S-03PNLNT1T00L
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
1.25mm PITCH 180° WAFER-SMT TYPE
Description:
1x3P Tin Phosphor Bronze 1.25mm 50V 3 1 Surface Mount,Vertical -25℃~+85℃ SMD,P=1.25mm Headers, Male Pins RoHS
Datasheet:
Joint Tech Elec A12514WV-S-03PNLNT1T00L
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.25mm
Pins Structure:
1x3P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Pitch:
1.25mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
3
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Z-Height of the Board:
4.05mm
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
