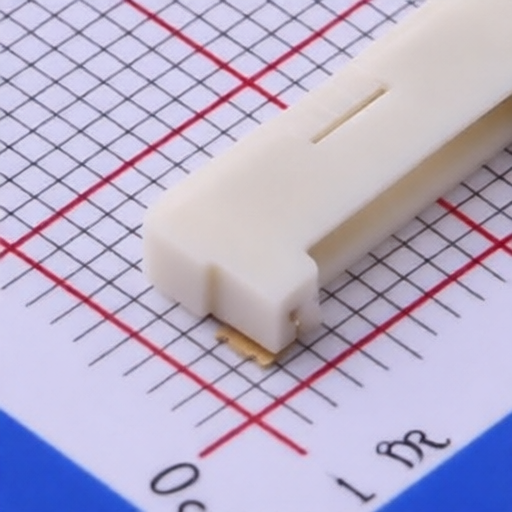

Joint Tech Elec A1253WRA-S-08PD01
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1253WRA-S-08PD01
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 8POS 1.25mm
Description:
Connector Header 8 position 1.25mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Joint Tech Elec A1253WRA-S-08PD01
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
7.25mm
Reference Series:
-
Pins Structure:
1x8P
Contact Plating:
Gold
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.25mm
Voltage Rating (Max):
150V
Number of PINs Per Row:
8
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
14.95mm
Z-Height of the Board:
3.45mm
Mounting Type:
Surface Mount, Right Angle
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
