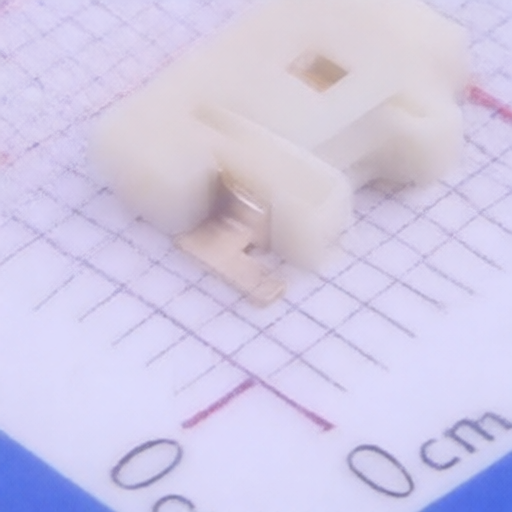

Joint Tech Elec A1254WR-S-03PD02
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1254WR-S-03PD02
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 3POS 1.25mm
Description:
Connector Header 3 position 1.25mm Pitch
Datasheet:
Joint Tech Elec A1254WR-S-03PD02
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
5.5mm
Pins Structure:
1x3P
Reference Series:
-
Pitch:
1.25mm
Contact Material:
Brass;PA6T
Voltage Rating (Max):
125V
Number of PINs Per Row:
3
Number of Rows:
1
Z-Height of the Board:
1.85mm
Operating Temperature:
-25℃~+85℃
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
