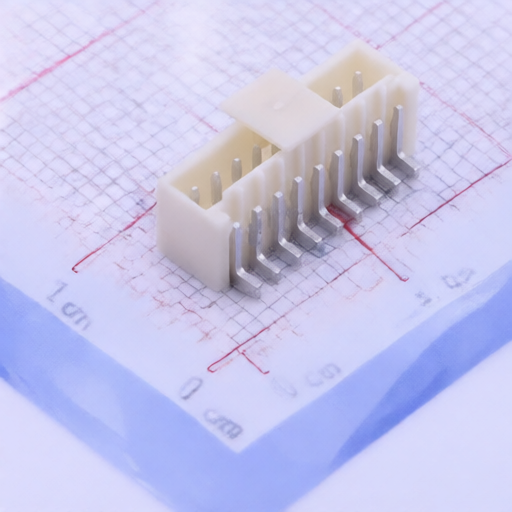

Joint Tech Elec A1501WV-S-09P
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1501WV-S-09P
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 9POS 1.5mm
Description:
Connector Header 9 position 1.5mm Pitch
Datasheet:
Joint Tech Elec A1501WV-S-09P
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x9P
Reference Series:
-
Contact Material:
Brass
Pitch:
1.5mm
Voltage Rating (Max):
350V
Number of PINs Per Row:
9
Number of Rows:
1
Z-Height of the Board:
5.75mm
Operating Temperature:
-25℃~+85℃
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
