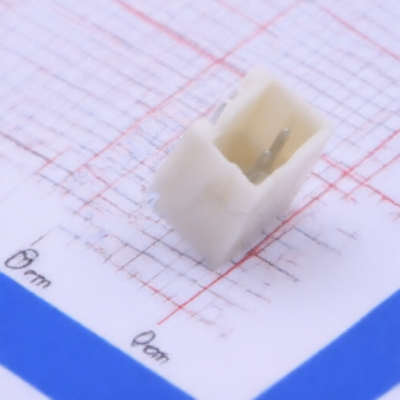

Joint Tech Elec A1501WR-S-03P
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1501WR-S-03P
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 3POS 1.5mm
Description:
Connector Header 3 position 1.5mm Pitch
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
7.75mm
Pins Structure:
1x3P
Reference Series:
-
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.5mm
Voltage Rating (Max):
350V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5.8mm
Z-Height of the Board:
4.45mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
