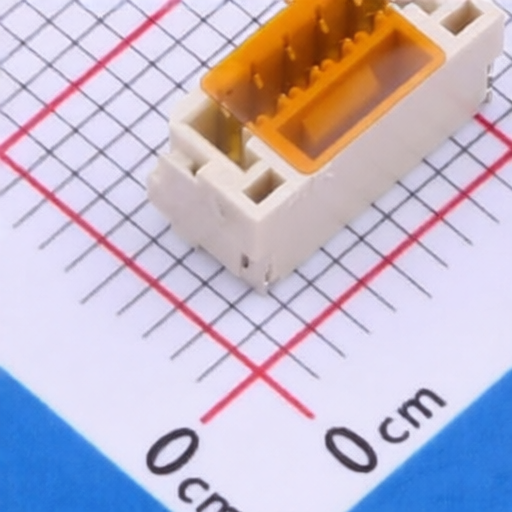

Joint Tech Elec A12514WV-S-05PNLNT1T00L
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A12514WV-S-05PNLNT1T00L
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
1.25mm PITCH 180° WAFER - SMT TYPE
Description:
1x5P Tin 1.25mm 50V 5 1 Surface Mount,Vertical -25℃~+85℃ SMD,P=1.25mm Headers, Male Pins RoHS
Datasheet:
Joint Tech Elec A12514WV-S-05PNLNT1T00L
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.25mm
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Pitch:
1.25mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
9.5mm
Mounting Type:
Surface Mount,Vertical
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
