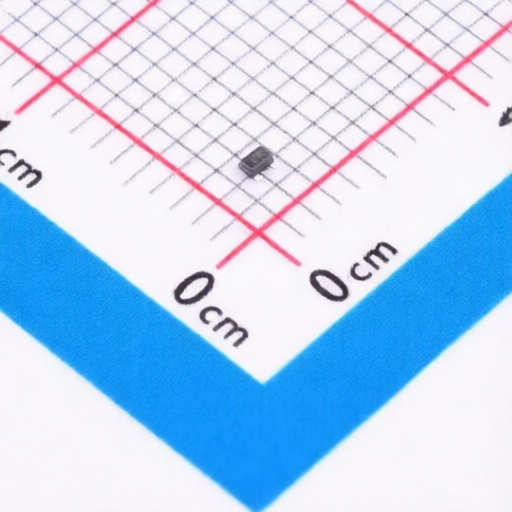

JingYang TPM05K20CX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TPM05K20CX
Package:
SOT-723
Customer #:
Key Attributes:
MOSFET P-CH 20V 0.66A SOT-723
Description:
P-Channel 20V 0.66A 150mW Surface Mount SOT-723
Datasheet:
JingYang TPM05K20CX
Products Specifications
Manufacturer:
Package:
SOT-723
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
660mA
RDS(on):
600mΩ@2.5V,0.5A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.2V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
9pF
Number:
1 P-Channel
Input Capacitance(Ciss):
113pF
Output Capacitance(Coss):
15pF
Pd - Power Dissipation:
150mW
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 8000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
