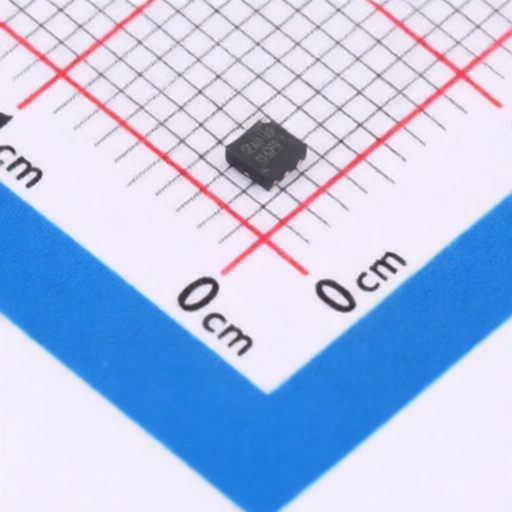

JingYang TNM3020JX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TNM3020JX
Package:
DFN2x2-6L
Customer #:
Key Attributes:
MOSFET N-CH 20V 8A DFN2x2-6L
Description:
N-Channel 20V 8A 1.3W Surface Mount DFN2x2-6L
Datasheet:
JingYang TNM3020JX
Products Specifications
Manufacturer:
Package:
DFN2x2-6L
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
8A
RDS(on):
18mΩ@4.5V;23mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
500mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
140pF@10V
Number:
1 N-channel
Output Capacitance(Coss):
300pF
Input Capacitance(Ciss):
500pF@10V
Pd - Power Dissipation:
1.3W
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
