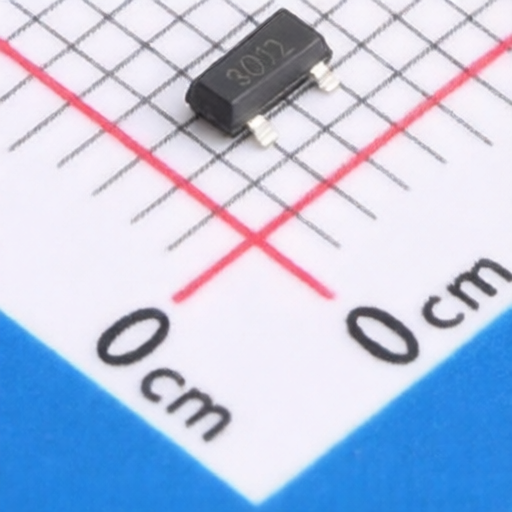

JingYang TPM3012V1SX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TPM3012V1SX
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 12V 5A SOT-23
Description:
P-Channel 12V 5A 1.5W Surface Mount SOT-23
Datasheet:
JingYang TPM3012V1SX
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
12V
Current - Continuous Drain(Id):
5A
RDS(on):
32mΩ@4.5V,1A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
116pF
Output Capacitance(Coss):
219pF
Input Capacitance(Ciss):
984pF
Pd - Power Dissipation:
1.5W
Gate Charge(Qg):
8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JingYang
349 Products
Shenzhen Jingyang Electronics Co., Ltd.
(hereafter referred to as "JYELECTRONICS" or "Shenzhen JingYang") was established in 2006 and has specialized in IC design, production, sales, and system integration for many years. The company operates several wholly-owned subsidiaries and holding companies and holds nearly 100 valid patents and other intellectual property rights. It is recognized as a leading "circuit and system protection expert" in the industry. JYELECTRONICS offers a wide range of products, including ESD devices, TVS components, LED display driver chips, MOSFETs, diodes, triodes, power management chips, interface chips, and more. These products find applications in various areas such as computers, televisions, network communications, smart wearables, security monitoring, home appliances, industrial control, new energy vehicles, and power tools. JYELECTRONICS is committed to the business philosophy of "customer first, quality first, and integrity-based." JYELECTRONICS strives
