Jiangsu JieJie Microelectronics JMSH1504NTL-13

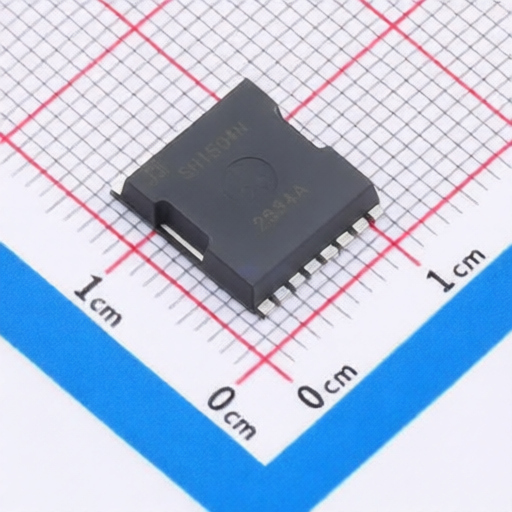

Jiangsu JieJie Microelectronics JMSH1504NTL-13

Name: Jiangsu JieJie Microelectronics JMSH1504NTL-13
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSH1504NTL-13

Package: PowerJE10x12

Customer #:

Key Attributes: 150V N-Ch Power MOSFET

Description: 150V 263A 3.3mΩ@10V 3.2V 1 N-channel 625W PowerJE10x12 Single FETs, MOSFETs RoHS

Datasheet: Jiangsu JieJie Microelectronics JMSH1504NTL-13

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PowerJE10x12

Drain to Source Voltage:

150V

Current - Continuous Drain(Id):

263A

RDS(on):

3.3mΩ@10V

Gate Threshold Voltage (Vgs(th)):

3.2V

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

26pF

Number:

1 N-channel

Output Capacitance(Coss):

772pF

Input Capacitance(Ciss):

8.622nF

Pd - Power Dissipation:

625W

Gate Charge(Qg):

125nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMSH1504NTL-13

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
