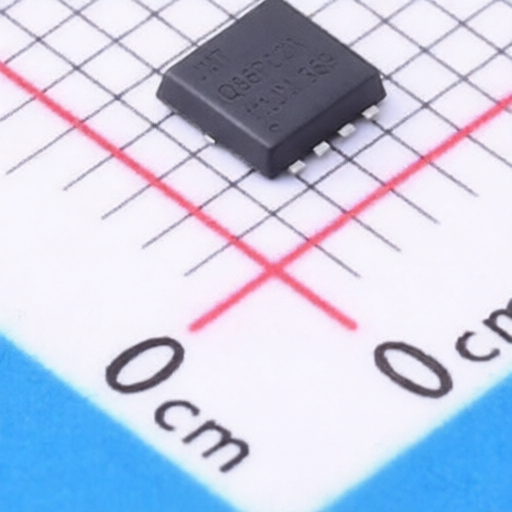

Jiangsu JieJie Microelectronics JMTQ55P02A

Jiangsu JieJie Microelectronics JMTQ55P02A

Name: Jiangsu JieJie Microelectronics JMTQ55P02A
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMTQ55P02A

Package: PDFN3.3x3.3-8L

Customer #:

Key Attributes: MOSFET P-CH 20V 55A PDFN3.3x3.3-8L

Description: P-Channel 20V 55A 38W Surface Mount PDFN3.3x3.3-8L

Datasheet: Jiangsu JieJie Microelectronics JMTQ55P02A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN3.3x3.3-8L

Drain to Source Voltage:

20V

Current - Continuous Drain(Id):

55A

RDS(on):

12mΩ@2.5V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

1V@250uA

Type:

P-Channel

Reverse Transfer Capacitance (Crss@Vds):

459pF@10V

Number:

1 P-Channel

Input Capacitance(Ciss):

4.6nF@10V

Pd - Power Dissipation:

38W

Gate Charge(Qg):

46nC@4.5V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMTQ55P02A

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
