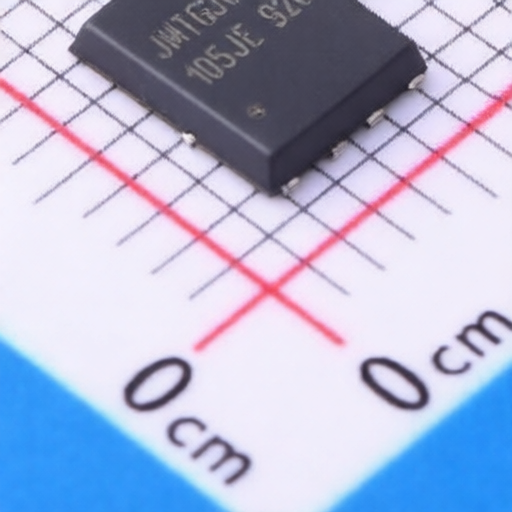

Jiangsu JieJie Microelectronics JMTG3002B

Jiangsu JieJie Microelectronics JMTG3002B

Name: Jiangsu JieJie Microelectronics JMTG3002B
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMTG3002B

Package: PDFN5X6-8L

Customer #:

Key Attributes: MOSFET N-CH 30V 120A PDFN5X6-8L

Description: N-Channel 30V 120A 48W Surface Mount PDFN5x6-8L

Datasheet: Jiangsu JieJie Microelectronics JMTG3002B

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN5X6-8L

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

120A

RDS(on):

2.4mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

2.5V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

566pF@15V

Number:

1 N-channel

Input Capacitance(Ciss):

4.93nF@15V

Pd - Power Dissipation:

48W

Gate Charge(Qg):

70nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMTG3002B

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
