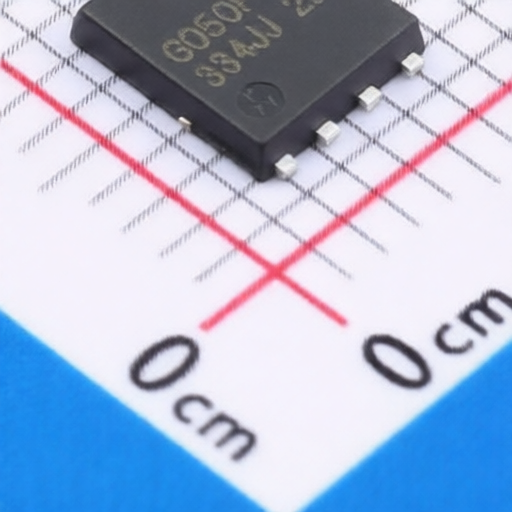

Jiangsu JieJie Microelectronics JMTG050P03A

Jiangsu JieJie Microelectronics JMTG050P03A

Name: Jiangsu JieJie Microelectronics JMTG050P03A
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMTG050P03A

Package: PDFN5x6-8L

Customer #:

Key Attributes: P-channel Enhancement Mode Power MOSFET

Description: 30V 80A 1.5V@250uA 1 P-Channel 57W PDFN5x6-8L Single FETs, MOSFETs RoHS

Datasheet: Jiangsu JieJie Microelectronics JMTG050P03A

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN5x6-8L

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

80A

RDS(on):

3.3mΩ@10V;5.1mΩ@4.5V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

1.5V@250uA

Reverse Transfer Capacitance (Crss@Vds):

650pF

Number:

1 P-Channel

Input Capacitance(Ciss):

8.18nF

Pd - Power Dissipation:

57W

Output Capacitance(Coss):

945pF

Gate Charge(Qg):

125nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	4000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
