Jiangsu JieJie Microelectronics JMSL0406AG

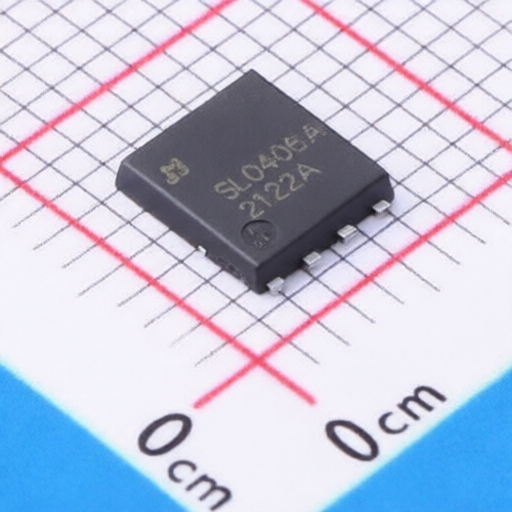

Jiangsu JieJie Microelectronics JMSL0406AG

Name: Jiangsu JieJie Microelectronics JMSL0406AG
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSL0406AG

Package: PDFN-8(5x6)

Customer #:

Key Attributes: MOSFET N-CH 40V 70A PDFN-8(5x6)

Description: N-Channel 40V 70A 42W Surface Mount PDFN-8(5x6)

Datasheet: Jiangsu JieJie Microelectronics JMSL0406AG

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN-8(5x6)

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

70A

RDS(on):

4.2mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

2.5V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

51pF

Number:

1 N-channel

Output Capacitance(Coss):

536pF

Pd - Power Dissipation:

42W

Input Capacitance(Ciss):

1.204nF

Gate Charge(Qg):

17.9nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMSL0406AG

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
