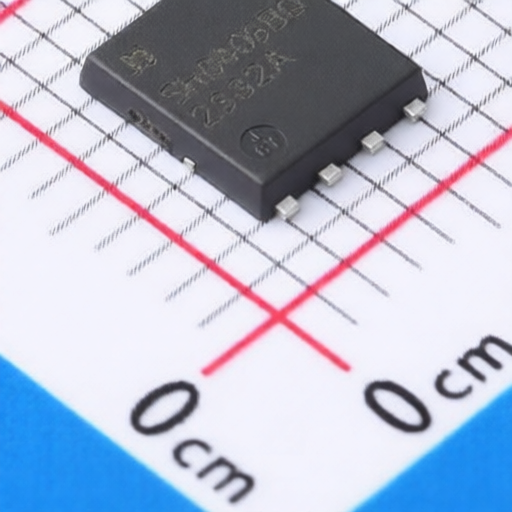

Jiangsu JieJie Microelectronics JMSH0403BGQ-13

Jiangsu JieJie Microelectronics JMSH0403BGQ-13

Name: Jiangsu JieJie Microelectronics JMSH0403BGQ-13
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSH0403BGQ-13

Package: PDFN5x6-8L

Customer #:

Key Attributes: MOSFET N-CH 40V 145A PDFN5x6-8L

Description: N-Channel 40V 145A 50W Surface Mount PDFN5x6-8L

Datasheet: Jiangsu JieJie Microelectronics JMSH0403BGQ-13

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN5x6-8L

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

145A

Operating Temperature -:

RDS(on):

2.8mΩ@10V,20A

Gate Threshold Voltage (Vgs(th)):

3.4V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

60pF

Number:

1 N-channel

Pd - Power Dissipation:

50W

Input Capacitance(Ciss):

2.086nF

Output Capacitance(Coss):

1.15nF

Gate Charge(Qg):

28nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMSH0403BGQ-13

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
