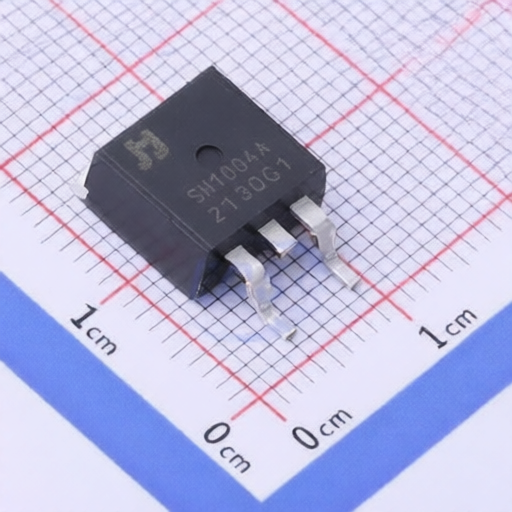

Jiangsu JieJie Microelectronics JMSH1004AE

Jiangsu JieJie Microelectronics JMSH1004AE

Name: Jiangsu JieJie Microelectronics JMSH1004AE
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSH1004AE

Package: TO-263-3

Customer #:

Key Attributes: MOSFET N-CH 100V 190A TO-263-3

Description: N-Channel 100V 190A 250W Surface Mount TO-263-3

Datasheet: Jiangsu JieJie Microelectronics JMSH1004AE

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

TO-263-3

Drain to Source Voltage:

100V

Current - Continuous Drain(Id):

190A

Operating Temperature -:

-55℃~+175℃

RDS(on):

3mΩ@10V

Gate Threshold Voltage (Vgs(th)):

4V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

8.5pF

Number:

1 N-channel

Output Capacitance(Coss):

1.361nF

Input Capacitance(Ciss):

4.398nF

Pd - Power Dissipation:

250W

Gate Charge(Qg):

66nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	800
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
