Jiangsu JieJie Microelectronics JMSH0401AGQ-13

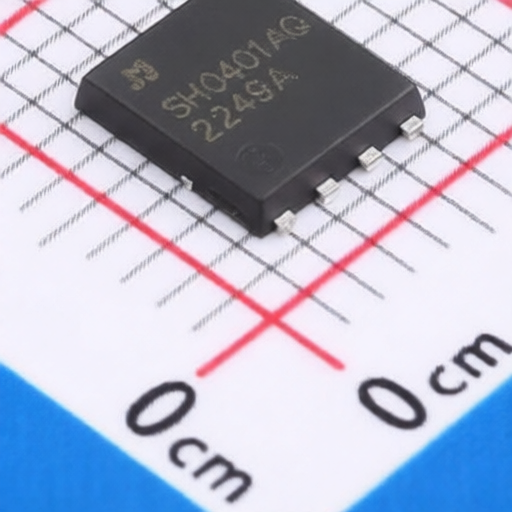

Jiangsu JieJie Microelectronics JMSH0401AGQ-13

Name: Jiangsu JieJie Microelectronics JMSH0401AGQ-13
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSH0401AGQ-13

Package: PDFN5x6-8L

Customer #:

Key Attributes: 40V 1.3mΩ N-Ch Power MOSFET

Description: 40V 197A 1.3mΩ@10V 2.8V@250uA 1 N-channel 136W PDFN5x6-8L Single FETs, MOSFETs RoHS

Datasheet: Jiangsu JieJie Microelectronics JMSH0401AGQ-13

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN5x6-8L

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

197A

Operating Temperature -:

-55℃~+175℃

RDS(on):

1.3mΩ@10V

Gate Threshold Voltage (Vgs(th)):

2.8V@250uA

Reverse Transfer Capacitance (Crss@Vds):

18pF

Number:

1 N-channel

Input Capacitance(Ciss):

3.015nF

Output Capacitance(Coss):

2nF

Pd - Power Dissipation:

136W

Gate Charge(Qg):

42nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMSH0401AGQ-13

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
