Jiangsu JieJie Microelectronics JMSL1006AG-13

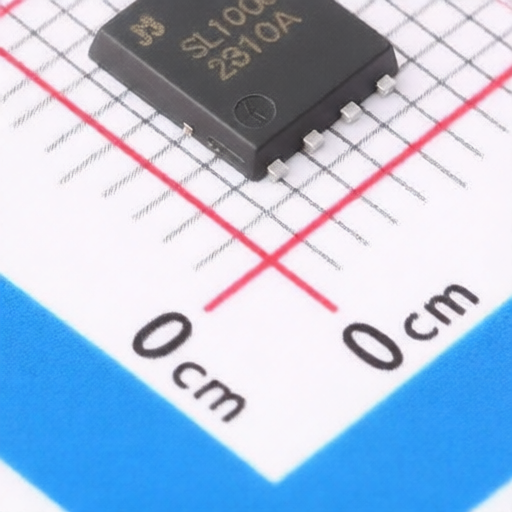

Jiangsu JieJie Microelectronics JMSL1006AG-13

Name: Jiangsu JieJie Microelectronics JMSL1006AG-13
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSL1006AG-13

Package: PDFN5x6-8L

Customer #:

Key Attributes: MOSFET N-CH 100V 108A PDFN5x6-8L

Description: N-Channel 100V 108A 130W Surface Mount PDFN5x6-8L

Datasheet: Jiangsu JieJie Microelectronics JMSL1006AG-13

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

PDFN5x6-8L

Drain to Source Voltage:

100V

Current - Continuous Drain(Id):

108A

RDS(on):

5.9mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

2.5V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

9.6pF

Number:

1 N-channel

Input Capacitance(Ciss):

2.604nF@50V

Pd - Power Dissipation:

130W

Gate Charge(Qg):

42nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
