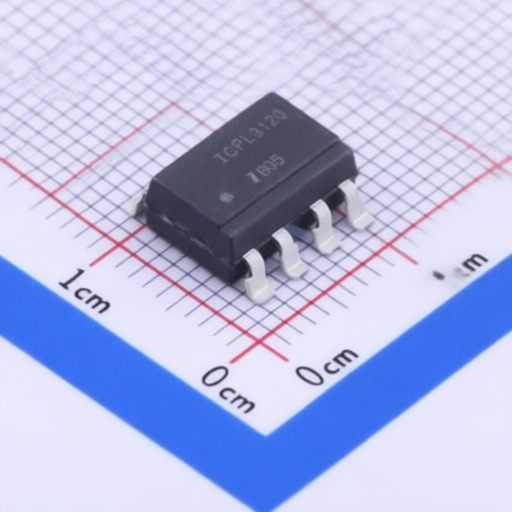

ISOCOM ICPL3120SMT/R
Manufacturer:
ISOCOM
Mfr. Part #:
ICPL3120SMT/R
Package:
SOP-8-2.54mm
Customer #:
Description:
2.5A 15V~30V 1.8V DC SOP-8-2.54mm Isolators - Gate Drivers RoHS
Datasheet:
ISOCOM ICPL3120SMT/R
Products Specifications
Category:
Manufacturer:
Package:
SOP-8-2.54mm
Power Dissipation:
295mW
Output Current:
2.5A
Operating Temperature:
-40℃~+105℃
Input threshold current:
5mA
Propagation Delay(tpd):
500ns;500ns
Isolation voltage(Vrms):
5kV
Voltage - Supply:
15V~30V
Voltage - Forward(Vf):
1.8V
CMTI(kV/us):
50kV/us
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ISOCOM
245 Products
Isocom
- Isocom Components is a leading manufacturer of high performance infrared optoelectronic devices specialising in optocouplers and optoswitches. Since the business was established over 25 years ago Isocom has consistently delivered in excess of there customer's expectations to become one of the most respected brands in the worldwide optoelectronic industry.Expert knowledge and flexible manufacturing processes result in the shortest production lead times in the world for many parts. Product quality and superior customer service is unrivalled and is endorsed by many long-standing customers.
Isocom Components is your natural alternative to all popular commercial optocoupler industry standard types including many no longer supplied by other manufacturers. In addition, they carry out special parametric selections to meet customer's specific circuit design requirements. Parts are available approved to the leading recognized industry standards and all devices are available in various
