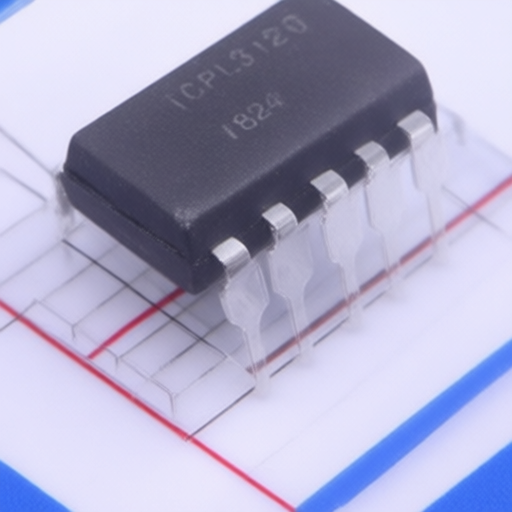

ISOCOM ICPL3120
Manufacturer:
ISOCOM
Mfr. Part #:
ICPL3120
Package:
DIP-8
Customer #:
Key Attributes:
Optocoupled power drive output
Description:
2.5A 5V 16mA 15V~30V 1.37V DC DIP-8 Isolators - Gate Drivers RoHS
Datasheet:
ISOCOM ICPL3120
Products Specifications
Category:
Manufacturer:
Package:
DIP-8
Power Dissipation:
295mW
Output Current:
2.5A
Operating Temperature:
-40℃~+105℃
Input threshold current:
5mA
Propagation Delay(tpd):
500ns;500ns
Isolation voltage(Vrms):
5kV
Reverse Voltage:
5V
Forward Current:
16mA
Voltage - Supply:
15V~30V
Voltage - Forward(Vf):
1.37V
CMTI(kV/us):
50kV/us
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
