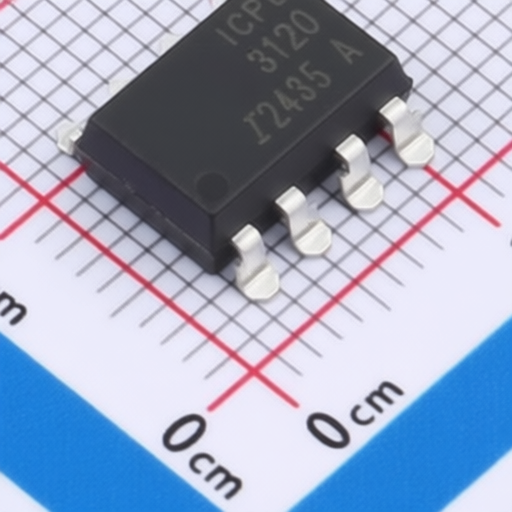

ISOMICRON ICPL-3120-500EAXW
Manufacturer:
ISOMICRON
Asian Brands
Mfr. Part #:
ICPL-3120-500EAXW
Package:
SMD-8P
Customer #:
Key Attributes:
2.5A, Gate Driver Photo Coupler
Description:
2.5A 5V 13ns 30V 13ns 1.38V SMD-8P Isolators - Gate Drivers RoHS
Datasheet:
ISOMICRON ICPL-3120-500EAXW
Products Specifications
Category:
Manufacturer:
Package:
SMD-8P
Power Dissipation:
295mW
Output Current:
2.5A
Operating Temperature:
-40℃~+110℃
Propagation Delay(tpd):
500ns;500ns
Isolation voltage(Vrms):
5kV
Reverse Voltage:
5V
Rise Time:
13ns
Voltage - Supply:
30V
Fall Time:
13ns
Voltage - Forward(Vf):
1.38V
CMTI(kV/us):
20kV/us
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
