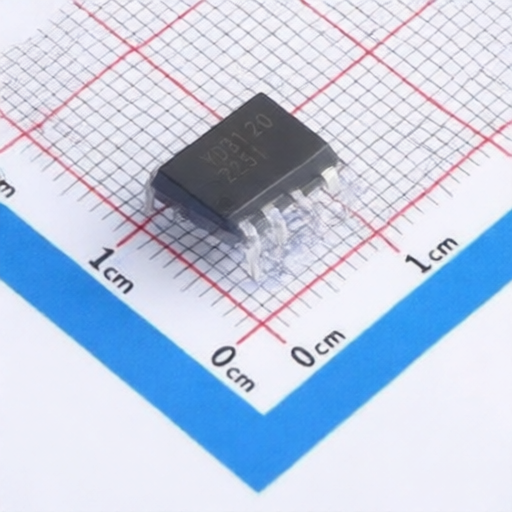

KTP HCPL-3120-C1LO

KTP HCPL-3120-C1LO

Name: KTP HCPL-3120-C1LO
Brand: KTP

Manufacturer: KTP Asian Brands

Mfr. Part #: HCPL-3120-C1LO

Package: DIP-8

Customer #:

Key Attributes: High noise suppression, 2.5A output current, gate drive optocoupler

Description: 2.5A 5V 60ns 0V~30V 60ns 1.5V DIP-8 Isolators - Gate Drivers RoHS

Datasheet: KTP HCPL-3120-C1LO

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

KTP

Package:

DIP-8

Power Dissipation:

Output Current:

2.5A

Operating Temperature:

-40℃~+100℃

Isolation voltage(Vrms):

5kV

Propagation Delay(tpd):

400ns;400ns

Reverse Voltage:

Load Type:

IGBT

Rise Time:

60ns

Voltage - Supply:

0V~30V

Fall Time:

60ns

Voltage - Forward(Vf):

1.5V

CMTI(kV/us):

35kV/us

Number of Channels:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	-
USHTS	-
TARIC	-
CAHTS	-
BRHTS	-
INHTS	-
MXHTS	-

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

KTP

264 Products

Asian Brand

KTP, founded in Taiwan, China in 2012, is a national high-tech enterprise and an intellectual property management certified company. In 2023, it established its Asia-Pacific headquarters in Shenzhen. The company focuses on the design of advanced power device chips for industrial and automotive grades, mainly producing diodes, thyristors, MOSFETs, IGBTs, and optocouplers.
