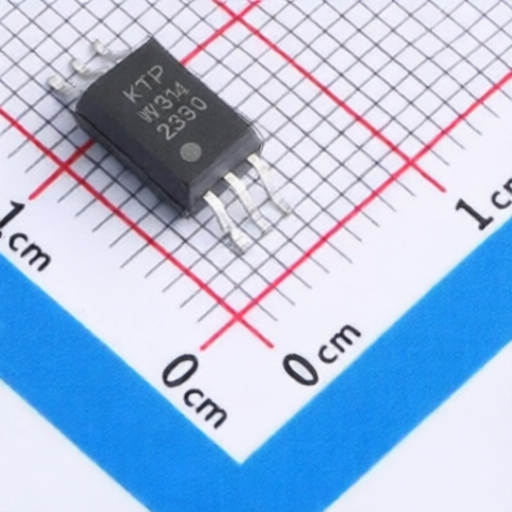

KTP ACPL-W314-C5L0
Manufacturer:
KTP
Asian Brands
Mfr. Part #:
ACPL-W314-C5L0
Package:
SSOP-6
Customer #:
Key Attributes:
Gate drive optocoupler with 0.6A output current
Description:
600mA 5V 50ns 10V~30V 50ns 1.5V SSOP-6 Isolators - Gate Drivers RoHS
Datasheet:
KTP ACPL-W314-C5L0
Products Specifications
Category:
Manufacturer:
Package:
SSOP-6
Power Dissipation:
-
Output Current:
600mA
Operating Temperature:
-40℃~+100℃
Propagation Delay(tpd):
700ns;700ns
Isolation voltage(Vrms):
5kV
Reverse Voltage:
5V
Load Type:
MOSFET;IGBT
Rise Time:
50ns
Voltage - Supply:
10V~30V
Fall Time:
50ns
Voltage - Forward(Vf):
1.5V
CMTI(kV/us):
25kV/us
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
KTP
264 Products
KTP, founded in Taiwan, China in 2012, is a national high-tech enterprise and an intellectual property management certified company. In 2023, it established its Asia-Pacific headquarters in Shenzhen. The company focuses on the design of advanced power device chips for industrial and automotive grades, mainly producing diodes, thyristors, MOSFETs, IGBTs, and optocouplers.
