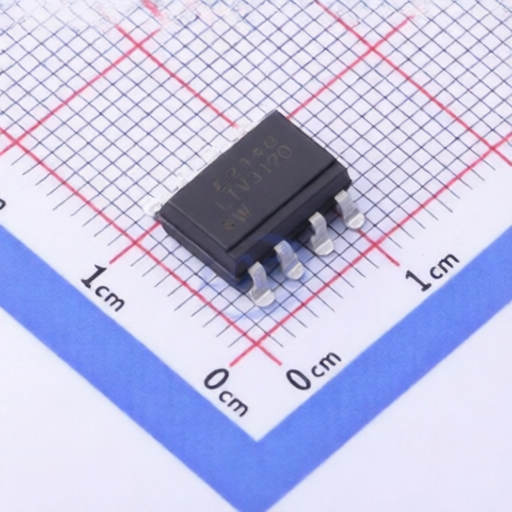

LITEON LTV-3120S-TA1
Manufacturer:
LITEON
Asian Brands
Mfr. Part #:
LTV-3120S-TA1
Package:
SMD-8P
Customer #:
Key Attributes:
3.0 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage, High CMR
Description:
5V 20mA 15V~30V 1.37V DC SMD-8P Isolators - Gate Drivers RoHS
Datasheet:
LITEON LTV-3120S-TA1
Products Specifications
Category:
Manufacturer:
Package:
SMD-8P
Power Dissipation:
745mW
Data Rate:
-
Operating Temperature:
-40℃~+110℃
Input threshold current:
5mA
Propagation Delay(tpd):
500ns;500ns
Isolation voltage(Vrms):
5kV
Reverse Voltage:
5V
Forward Current:
20mA
Voltage - Supply:
15V~30V
Voltage - Forward(Vf):
1.37V
CMTI(kV/us):
50kV/us
Number of Channels:
1
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
