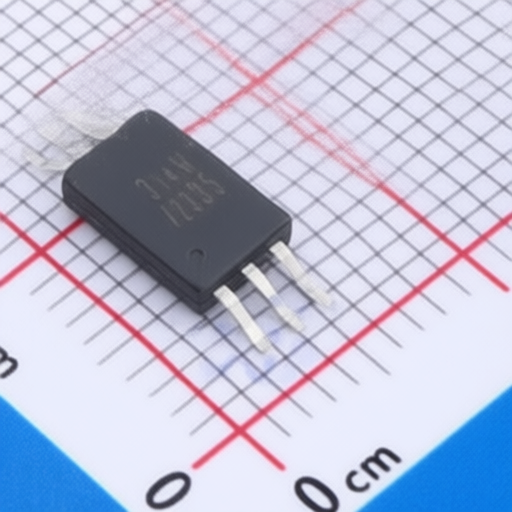

ISOMICRON ICPL-314W-500EAXW
Manufacturer:
ISOMICRON
Asian Brands
Mfr. Part #:
ICPL-314W-500EAXW
Package:
LSOP-6
Customer #:
Key Attributes:
1A, Gate Driver Photo Coupler
Description:
1A 5V 35ns 30V 25ns 1.9V LSOP-6 Isolators - Gate Drivers RoHS
Datasheet:
ISOMICRON ICPL-314W-500EAXW
Products Specifications
Category:
Manufacturer:
Package:
LSOP-6
Output Current:
1A
Operating Temperature:
-40℃~+110℃
Isolation voltage(Vrms):
5kV
Propagation Delay(tpd):
110ns;110ns
Reverse Voltage:
5V
Load Type:
MOSFET;IGBT
Rise Time:
35ns
Voltage - Supply:
30V
Fall Time:
25ns
Voltage - Forward(Vf):
1.9V
CMTI(kV/us):
40kV/us
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
