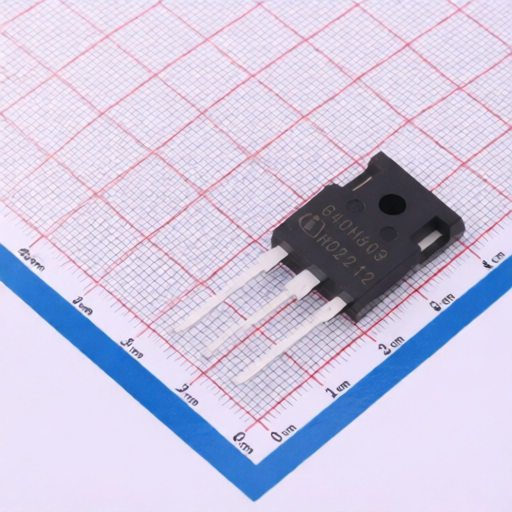

Infineon IGW40N60H3
Manufacturer:
Infineon
Mfr. Part #:
IGW40N60H3
Package:
TO-247-3
Customer #:
Key Attributes:
High speed IGBT in Trench and Fieldstop technology
Description:
306W 600V FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IGW40N60H3
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
197ns
Pd - Power Dissipation:
306W
Td(on):
19ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
65pF
Input Capacitance(Cies):
2.194nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@0.58mA
Operating Temperature:
-40℃~+175℃
Output Capacitance(Coes):
82pF
Switching Energy(Eoff):
580uJ
Turn-On Energy (Eon):
1.1mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
