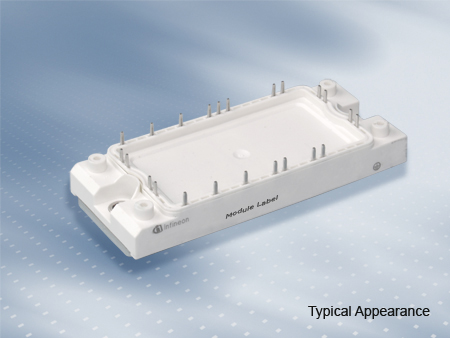

Infineon FP25R12KT4
Manufacturer:
Infineon
Mfr. Part #:
FP25R12KT4
Package:
Through Hole,107.5x45mm
Customer #:
Description:
IGBT FS (Field Stop) 1.2kV 25A 160W Through Hole,107.5x45mm
Datasheet:
Infineon FP25R12KT4
Products Specifications
Manufacturer:
Package:
Through Hole,107.5x45mm
Td(off):
330ns
Pd - Power Dissipation:
160W
Td(on):
160ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.05nF
Input Capacitance(Cies):
1.45nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.15V@15V,25A
Gate Charge(Qg):
0.2uC
Operating Temperature:
-40℃~+150℃@(Tj)
Pulsed Current- Forward(Ifm):
50A
Switching Energy(Eoff):
1.4mJ
Turn-On Energy (Eon):
1.8mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Infineon
9502 Products
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
