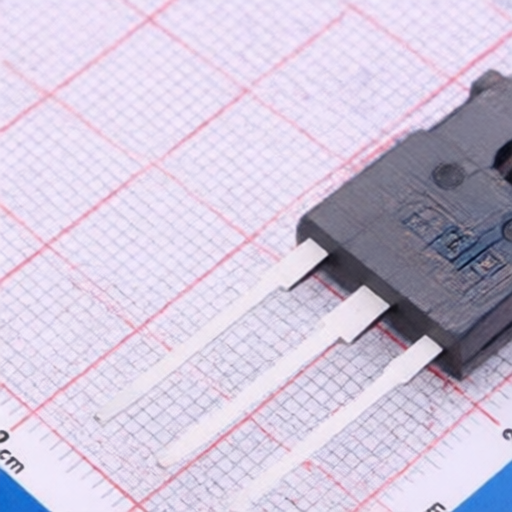

Infineon IGW25T120
Manufacturer:
Infineon
Mfr. Part #:
IGW25T120
Package:
TO-247-3
Customer #:
Key Attributes:
Low Loss IGBT in TrenchStop and Fieldstop technology
Description:
190W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IGW25T120
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
190W
Td(off):
560ns
Td(on):
50ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
82pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
155nC@15V
Output Capacitance(Coes):
96pF
Switching Energy(Eoff):
2.2mJ
Turn-On Energy (Eon):
2mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
