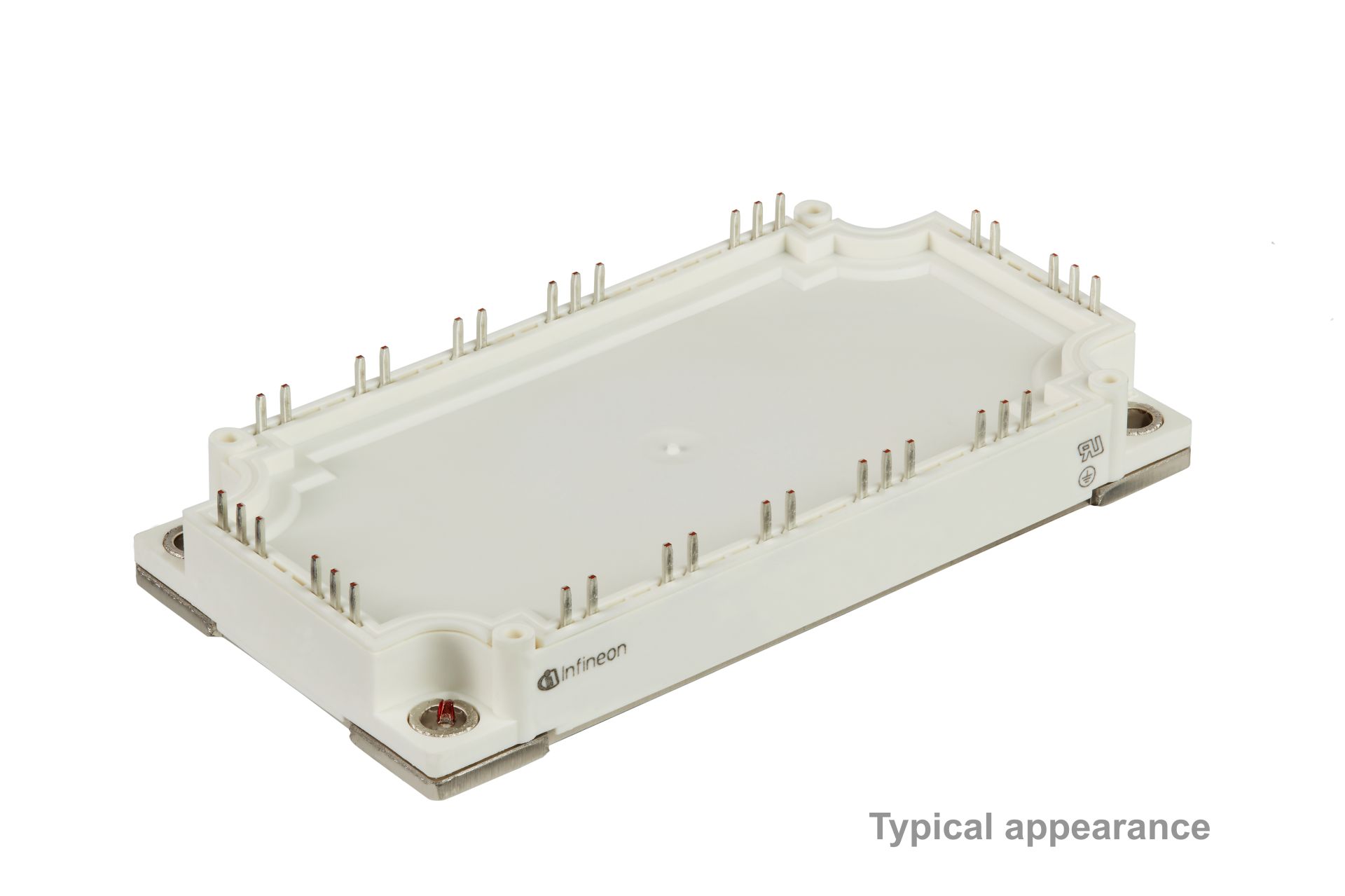

Infineon FS200R12N3T7
Manufacturer:
Infineon
Mfr. Part #:
FS200R12N3T7
Package:
Through Hole,122x62.5mm
Customer #:
Description:
1.2kV Through Hole,122x62.5mm Single IGBTs RoHS
Datasheet:
Infineon FS200R12N3T7
Products Specifications
Manufacturer:
Package:
Through Hole,122x62.5mm
Td(off):
352ns
Td(on):
172ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.14nF
Input Capacitance(Cies):
40.3nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.15V@4.6mA
Gate Charge(Qg):
3.34uC
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
400A
Switching Energy(Eoff):
13.6mJ
Turn-On Energy (Eon):
25.5mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
