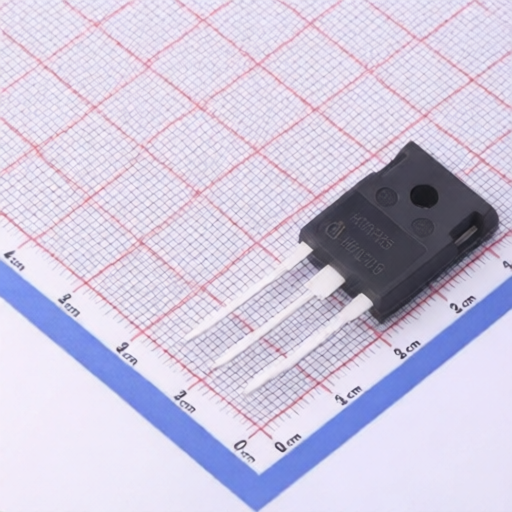

Infineon IHW30N135R5
Manufacturer:
Infineon
Mfr. Part #:
IHW30N135R5
Package:
TO-247-3
Customer #:
Key Attributes:
Resonant Switching Series Reverse Conducting IGBT with monolithic body diode
Description:
330W 1.35kV TO-247-3 Single IGBTs RoHS
Datasheet:
Infineon IHW30N135R5
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
310ns
Pd - Power Dissipation:
330W
Collector-Emitter Breakdown Voltage (Vces):
1.35kV
Reverse Transfer Capacitance (Cres):
40pF
Input Capacitance(Cies):
1.81nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@0.75mA
Gate Charge(Qg):
235nC@15V
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
90A
Output Capacitance(Coes):
50pF
Switching Energy(Eoff):
1.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
