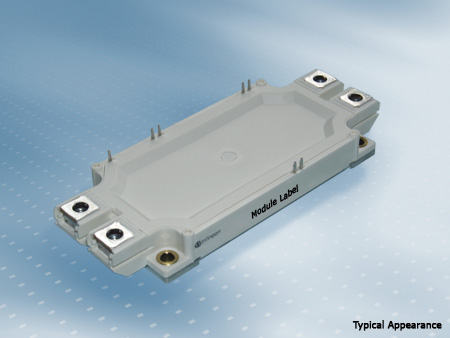

Infineon FF225R12ME4
Manufacturer:
Infineon
Mfr. Part #:
FF225R12ME4
Package:
Screw Terminals
Customer #:
Description:
IGBT FS (Field Stop) 1.2kV 320A 1050W Screw Terminals
Datasheet:
Infineon FF225R12ME4
Products Specifications
Manufacturer:
Package:
Screw Terminals
Td(off):
380ns
Pd - Power Dissipation:
1.05kW
Td(on):
160ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.705nF
Input Capacitance(Cies):
13nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.15V@15V,225A
Operating Temperature:
-40℃~+150℃
Pulsed Current- Forward(Ifm):
450A
Switching Energy(Eoff):
17mJ
Turn-On Energy (Eon):
6.8mJ
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
